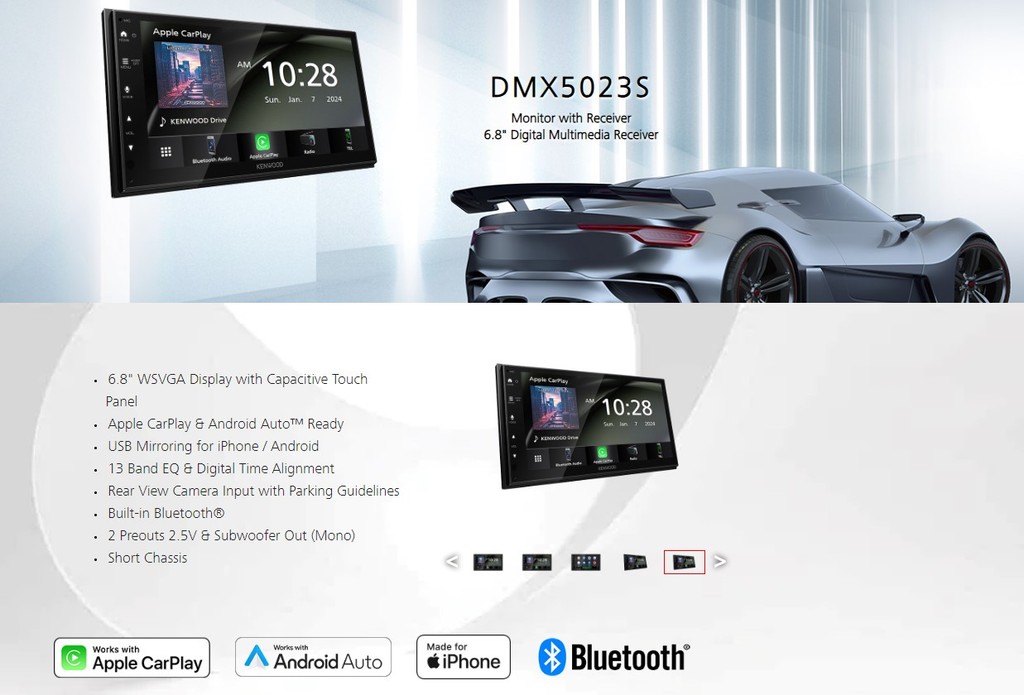

2024 Model Kenwood DMX5023S [DMX5020S Replacement Model] Apple Carplay & USB Android Auto 6.8" Full HD AV Receiver U/S

Kenwood 2024 New Model Replacing Old Model of DMX5020S

DMX5023S is a replacement model of DMX5020S

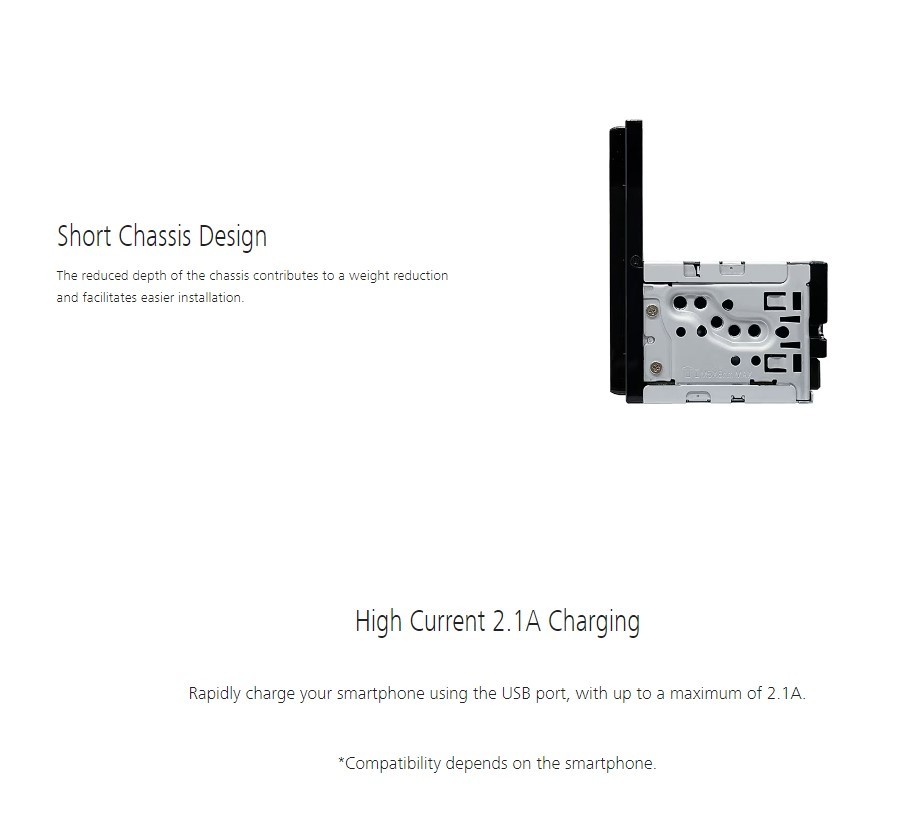

Short Chassis Design (1-Din / Single-Din Chassis)

The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

General Features

● 6.8" WSVGA Display with Capacitive Touch Panel

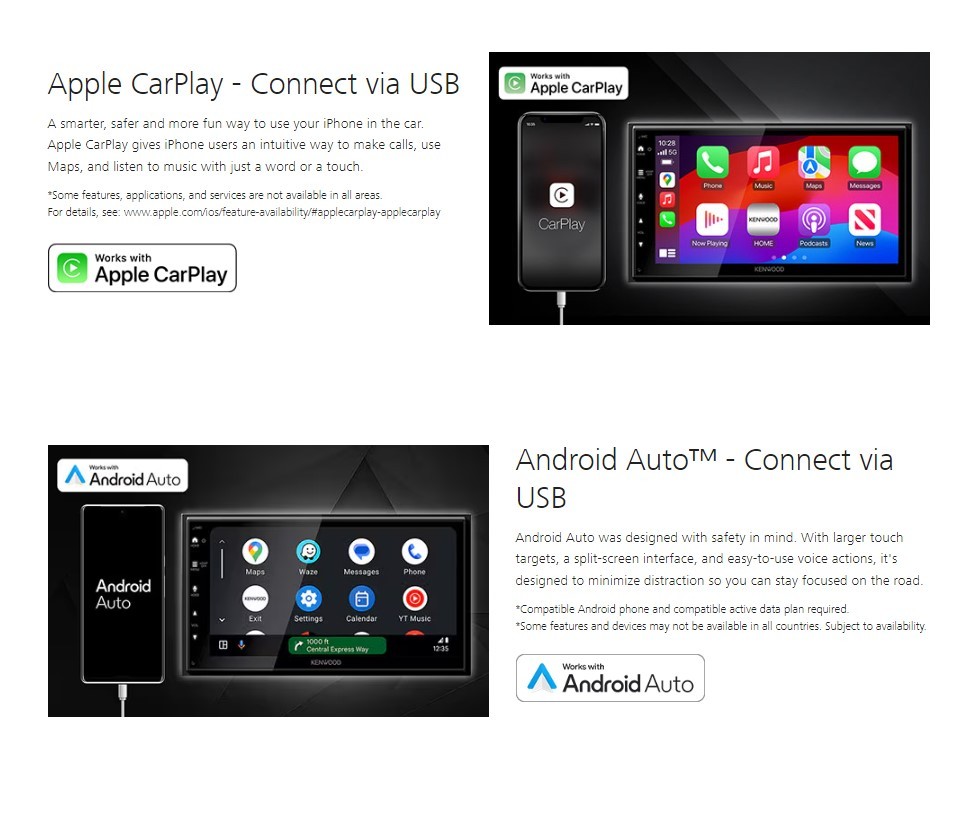

● Apple CarPlay & Android Auto™ Ready

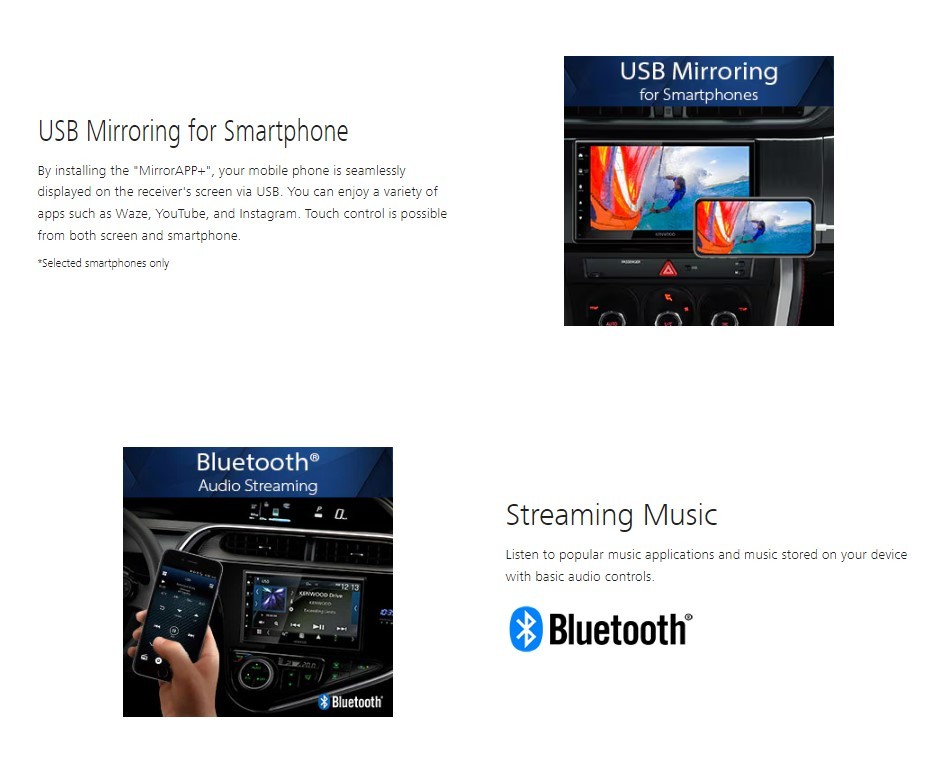

● USB Mirroring for iPhone / Android

● 13 Band EQ & Digital Time Alignment

● Rear View Camera Input with Parking Guidelines

● Built-in Bluetooth®

● 2 Preouts 2.5V & Subwoofer Out (Mono)

● Short Chassis

Detailed Specs

Monitor section~

Picture Size : 6.8 inches (diagonal) wide

Display System : Transparent TN LCD panel

Drive System : TFT active matrix system

Number of Pixels : 1,843,200 (1024H x 600V x RGB)

Effective Pixels : 99.99%

Pixel Arrangement : RGB striped arrangement

Back Lighting : LED

USB interface section~

USB Standard : USB 2.0 High Speed

File System : FAT 16/32, exFAT, NTFS

Maximum Power Supply Current : DC 5V 2.1 A

D/A Converter : 24 bit

Audio Decoder : MP3/WMA/AAC/WAV/FLAC

Video Decoder : MPEG1/MPEG2/MPEG4/WMV/H.264/MKV

Frequency Response

-192 kHz: 20-20,000 Hz

-96 kHz : 20-20,000 Hz

-48 kHz : 20-20,000 Hz

-44.1kHz: 20-20,000 Hz

Total Harmonic Distortion : 0.2% (1 kHz)

Signal to Noise Ratio : 75 dB

Dynamic Range : 75 dB

Bluetooth section~

Technology :Bluetooth Ver. 5.0

Frequency : 2.402-2.480 GHz

RF Output Power (E.I.R.P.) :+9 dBm (MAX), Power Class 1

Maximum Communication range : Line of sight approx. 10 m (32.8 ft)

Audio Codec :SBC/AAC

Profile (Multi Profile support)

-HFP (Hands Free Profile) 1.8

-A2DP (Advanced Audio Distribution Profile) 1.3

-AVRCP (Audio/Video Remote Control Profile) 1.6

-PBAP (Phonebook Access Profile) 1.2

DSP section~

Graphics equalizer

Band : 13 Band

Frequency (BAND1 - 13) :62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/ 6.3k/10k/16k Hz

Gain :-9/-8/-7/-6/-5/-4/-3/-2/-1/0/ +1/+2/+3/+4/+5/+6/+7/+8/+9 dB

2Way X'Over

-High pass filter

Frequency: Through, 30/40/50/60/70/80/90/ 100/120/150/180/220/250 Hz

Slope: -6/-12/-18/-24 dB/Oct.

Gain: -8/-7/-6/-5/-4/-3/-2/-1/0 dB

-Low pass filter

Frequency: 30/40/50/60/70/80/90/100/120/150/180/220/250 Hz, Through

Slope:-6/-12/-18/-24 dB/Oct.

Gain: -8/-7/-6/-5/-4/-3/-2/-1/0 dB

-Position

Front/Rear/Subwoofer Delay:0-6.1m (0.01 m Step)

-Gain

:-8-0 dB

-Subwoofer level

:-40-+6 dB
