Product Description
Features

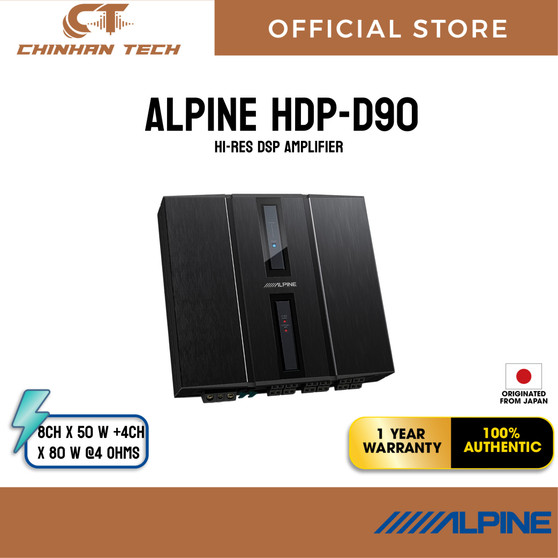

tHi-Res Audio DSP Amplifier (192kHz / 32bit max sampling rate without down-sampling)
tBuilt-in 12-channel amplifier (8x 50 Watts + 4x 80 Watts @ 4Ω, 14,4V)
tMUSES 8820 operational amplifier
tHighly flexible system configuration
tMatrix input summing
tHigh-Class XO (1/1.000) Crystal Oscillator Clock Generator
t31-Band / Channel Parametric / Graphic Equalizer
tDigital Time Correction
tExternal Bluetooth dongle included
tHigh-performance PC software

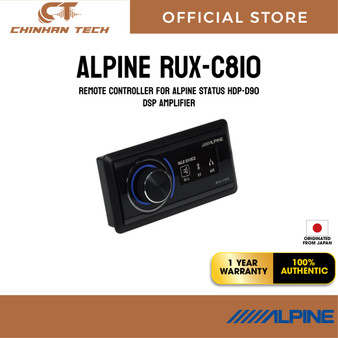

tOptional controller available (RUX-C810)
Specifications
Performance
tPower Output (rated 4Ω, 14,4V, 10% THD): 8x 50 Watt + 4x 80 Watt
tTHD+N RCA: 1W into 4Ω ≤0.01%
tS/N RCA: A-wt ≥100dB
tInput Voltage: High level 26 Vpp / RCA 8 Vpp
tOutput Voltage: High level CH1～8: 40 Vpp, CH9～12: 50 Vpp / RCA 10 Vpp
tFrequency Response (1W into 4Ω): 20Hz～40kHz
General
tInput Impedance: High level 14Ω / RCA 10kΩ
tSystem Sampling Rate: 192kHz/32bit
tOperating Voltage: 9～16V
tStandby Power Consumption: ≤0.1W
tRemote Start Input High-Level (H1-/H1+), ACC optional
tRemote Start Output: 12V (0.2A)
tOutput Channel Signal Gain Range: -60dB～+6dB
tOutput Signal Equalizer
Type: Parametric / Graphic Equalizer
Frequency: 20Hz～40kHz (1Hz steps)
Q value: 0.404～28.852
Gain: -12.0dB～+12.0dB (0.1dB steps)
tOutput Signal Divider
Pass independent filters
Filter type: Link-Ril, Bessel, Butter-W
Filter crossover point: 20Hz～40kHz (1Hz steps)
Filter slope: -6dB/Oct～-48dB/Oct
tOutput Phase: normal phase or reverse phase (0°～360°)
tOutput Delay: 0.000～20.000ms、0～692cm、0～273inch
tPreset Sound Effects: 6 sound data presets
tWeight 4.5kg
tDimensions: Width 278mm / Depth 256mm / Height 58mm
