Product Description

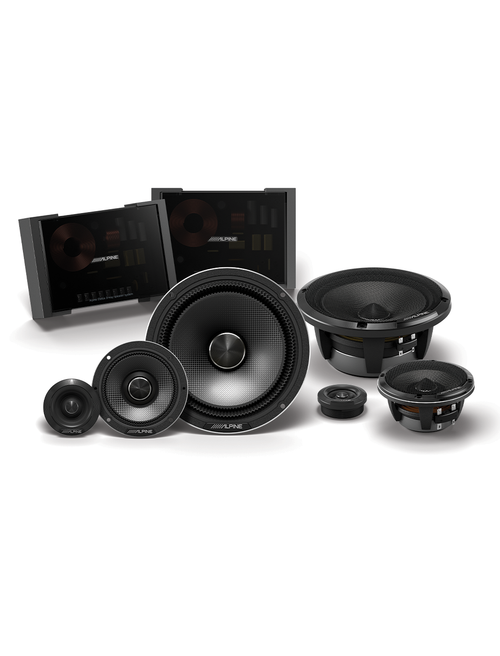

Alpine HDZ-653S Status Series 6-1/2" 3-way slim-fit component system
SPEAKERS (ALPINE STATUS HI-RES SPEAKERS)
•tDrawing from AlpineF#1Status trickle-down technology and materials, these Hi-Res Audio certified speakers deliver the highest audiophile sound quality up to 40kHz in your vehicle. They are available in different configurations to match your needs.
AlpineF#1Status Heritage
•tThese speakers get very close to the AlpineF#1Status speakers' look and feel, using a very similar construction and motor assembly, as well as identical build materials for the highest sound quality.
Clear Sound & Low Distortion
•tMany key features and technologies, such as the double-gathered surround, are AlpineF#1Status trickle-down features and ensure a very clear sound output with the lowest distortion.
Unified Timbre Identity
•tThe woofer, mid-range, and tweeter use Carbon composite cones to achieve a fully unified timber identity - resulting in excellent harmonics.
Slim-Fit Tweeters
•tThe tweeters of the HDZ-653S and HDZ-65CS include a smaller tweeter version (Slim-Fit), that is easier to integrate with original tweeter installation locations.
Frequency response
•t55Hz – 40KHz
Power handling
•tMaximum Peak Power: 300 W
•tMaximum RMS power: 100 W
•tSensitivity : 88 dB
Design
•tStructure: Carbon cone and Double Gathered Edge
•tAluminum die-cast
•tFerrite magnet
Dimension
•tTweeter: 25mm
•tMidrange: 90mm

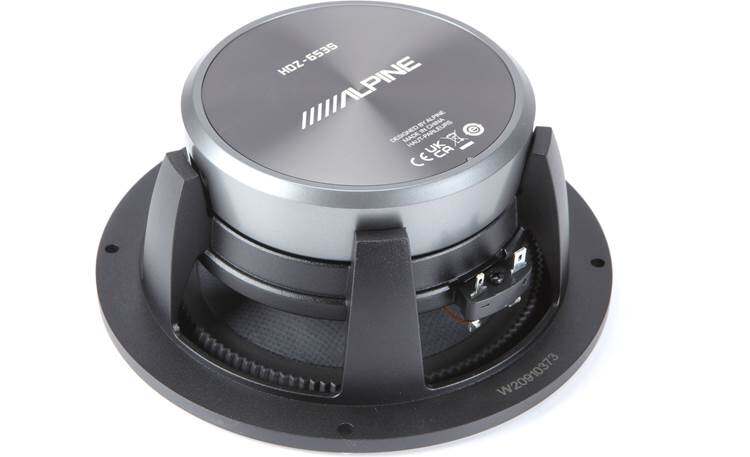

•tWoofer: 165mm
What's in the box:
•tTwo woofers
•tTwo woofer grilles
•tTwo midrange
•tTwo midrange grilles
•tTwo tweeters
•tTwo threaded tweeter mounting rings
•tTwo crossovers
•tEight M4 Screws (1-1/8")
•tSixteen M3 Screws (1-1/8")
•tEight speed-clips
•tEight flat washers
•tOwner's manual
•tWarranty information
•tImportant Notice
•tOn-line product registration information
•tAlpine HDZ-653S owner’s manual
