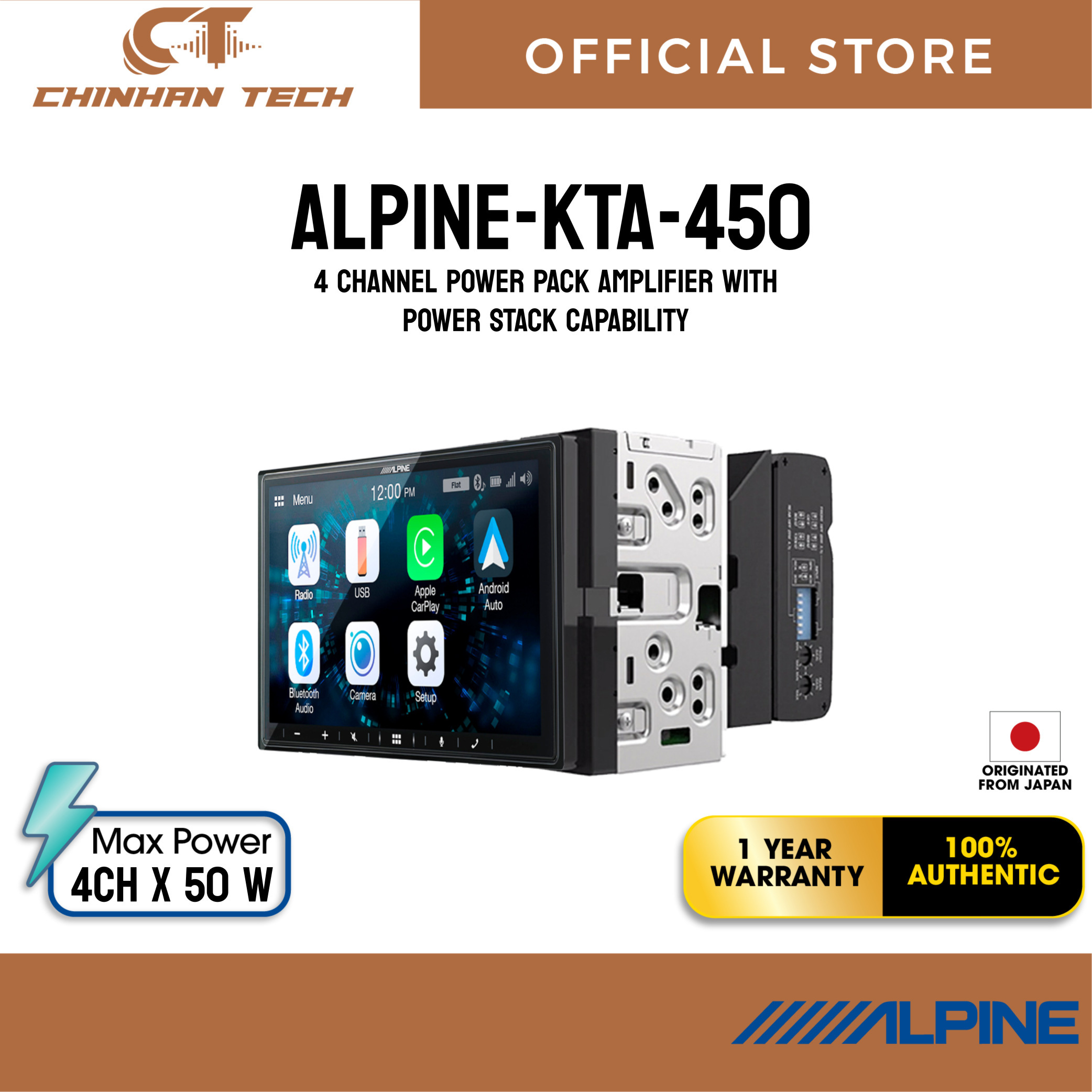

Product Description
Bump up the power
If adding more power makes music sound better, Alpine's KTA-450 power pack will make a significant improvement in your system. This compact 4-channel amplifier puts out 50 watts RMS per channel from a tiny chassis that'll fit almost anywhere in your vehicle. KTA-450 uses Alpine's Dynamic Peak Power (DPP) technology to deliver a quick energy boost when needed, virtually doubling the amplifier's output power on musical peaks.
PowerStack Installation
Here's a very cool idea from Alpine — the package includes a PowerStack bracket for mounting the amp in your dash behind Alpine's shallow chassis iLX-W650 or iLX-407 digital multimedia receiver. The combined depth of receiver and amp is still less than 5", so it'll fit in a wide variety of vehicles. The receiver and amp together make a feature-filled and powerful sound system that you'll enjoy for many miles.
Installation Notes: This power pack will not work in systems with a factory amplifier. Wiring and fuse are not included 12-gauge power and ground wires and a 20A inline fuse at the battery are required.
Product highlights:
• 4-channel car amplifier
o 50 watts RMS x 4 at 4 ohms (45 watts RMS x 4 at 2 ohms)
o 100 watts RMS x 2 bridged at 4 ohms
• CTA-2006 compliant
• Dynamic Peak Power (DPP) technology adds a burst of power when needed
• selectable high-pass filters (60, 80, 120 Hz at 12 dB/octave) on front and rear channels
• preamp and speaker-level inputs
• selectable 2- or 4-channel input
• PowerStack bracket included for mounting amp behind Alpine iLX-W650 (#500ILXW650) or iLX-407 (#500ILX407) digital multimedia receiver
• wiring, hardware, and fuse not included with amplifier
o 12-gauge power and ground leads and a 20A fuse recommended
• dimensions: 7"W x 1-3/8"H x 3-9/16"D
What's in the box:
• 4-Channel amplifier
• 12" Input/Output/Power harness
• 1 Head unit (iLX-W650) mounting bracket
• 2 Universal mounting brackets
• Four M5x6mm Allen head machine screws (3mm)
• Two M2.6x8mm Machine screws
• Four 3/8" Screws
• Four 7" Zip Ties
• Owner's Manual (English/ French/ Spanish)
• Warranty information
• On-line product registration information
