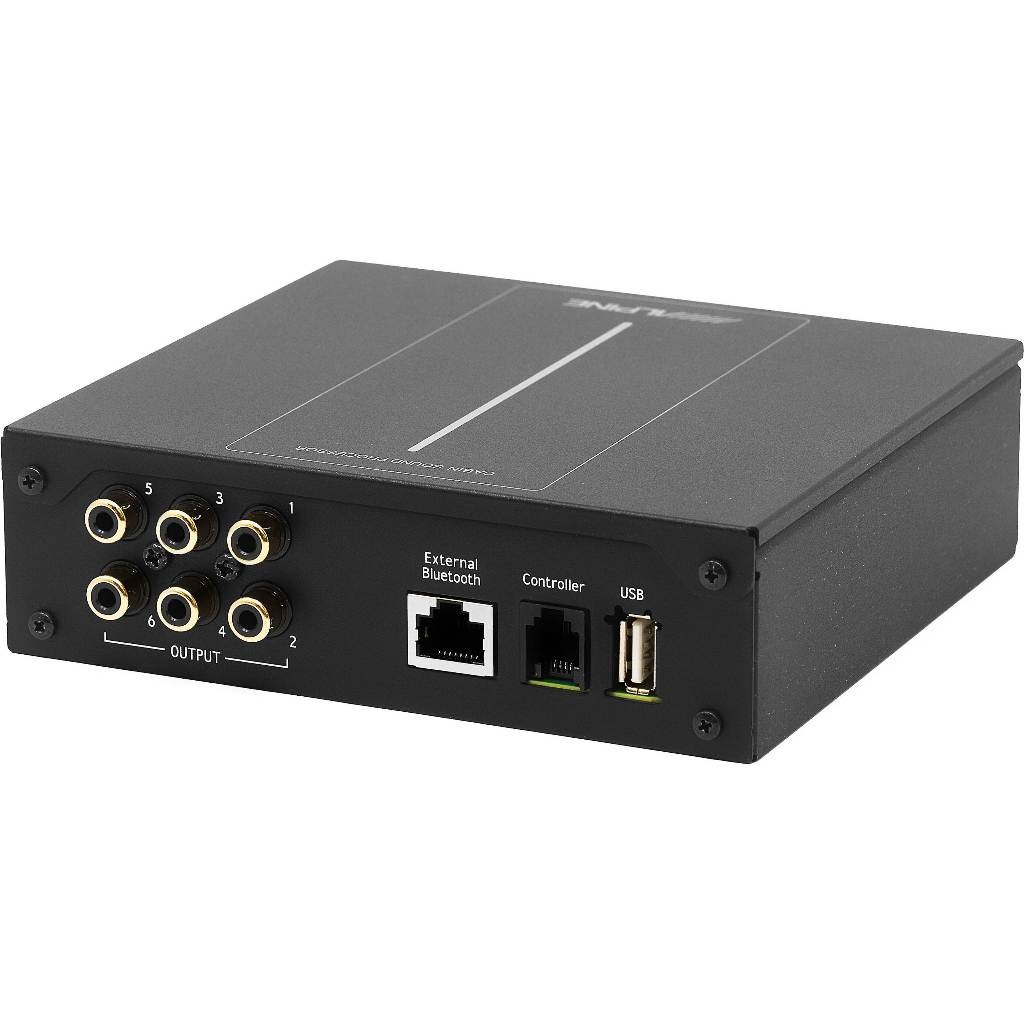

Alpine PXE-C60-60 OPTIM™6 six-channel DSP digital signal processor with automatic sound tuning

RM3,988.00
(0) Write a Review
SKU:
ALPINE-PXE-C60-60

Product Description

Sounds great automatically

Alpine has eliminated the pain and confusion that often goes along with trying to tune your system's sound using a digital signal processor (DSP) by making an audio processor that tunes itself. The Alpine Optim6™ sIx-channel PXE-C60-60 features automatic sound tuning and High-Definition performance so you'll experience exceptional fidelity, clarity, balance, and impact in your music without having to spend hours fiddling with controls and testing devices.



Alpine's DSP control app

Matrix mixing allows for summing and input/output signal management. Fully adjustable high-pass, low-pass, and bandpass filters, plus 31-band equalizers on every channel match the sound to your speakers and smooth out any hot spots or dips in the response due to your vehicle's interior. The delay feature lets you center the stereo image for your listening position. After initial setup using your PC device, all adjustments can be made automatically using the PXE-C60-60's control app run on your iPhone using its built-in mic, or with your PC using a separate measurement microphone, like Alpine's KTX-CSP1. PC users can make all the sound adjustments manually to create a more personalized soundscape.







Description:

●6-channel digital signal processor

●High-Resolution processing: 96 kHz, 24-bit

●frequency response: 20-40,000 Hz

●initial setup made via Alpine's DSP control app on your PC device

●automatic tuning via iPhone uses built-in mic and Bluetooth® connection (dongle included)

●automatic and manual tuning via PC uses an external measurement microphone like Alpine's KTX-CSP1 and USB ●connection (cable included)

●signal processing includes input/output routing, 31-band EQs, and multi-channel time alignment

●Anti-EQ eliminates factory EQ curves

More info:

●inputs: coax and USB digital (up to 192 kHz, 32-bit); 6-channel high-level speaker (up to 26V); 6-channel RCA

●amp's remote turn-on circuit ("Switched Power Lead") uses the included high-level input harness

●preamp outputs: 6-channel processed (4V)



dimensions: 5.72"W x 1.67"H x 8.46"D (includes wiring)

warranty: 1 year



What's in the box:

Alpine PXE-C60-60 owner's manual

●6-Channel DSP processor

●CSP Controller (attached 16" cable with 4-pin connector)

●16.25' Controller cable (4-pin connector on one end / RJ-12 connector on other end)

●KCE-800BT Bluetooth module (attached 6" cable terminated in an RJ-45 connector)

●5' USB-A cable (2.0)

●6" Wire harness (in-line 5A mini-ATC fuse)

●2 Mounting plates

●Four 3/4" pan-head screws

●Eight 6mm counter-sunk machine screws

●Quickstart guide (En/ Sp/ Fr/ Others)

●Warranty information

●Product registration
