Product Description

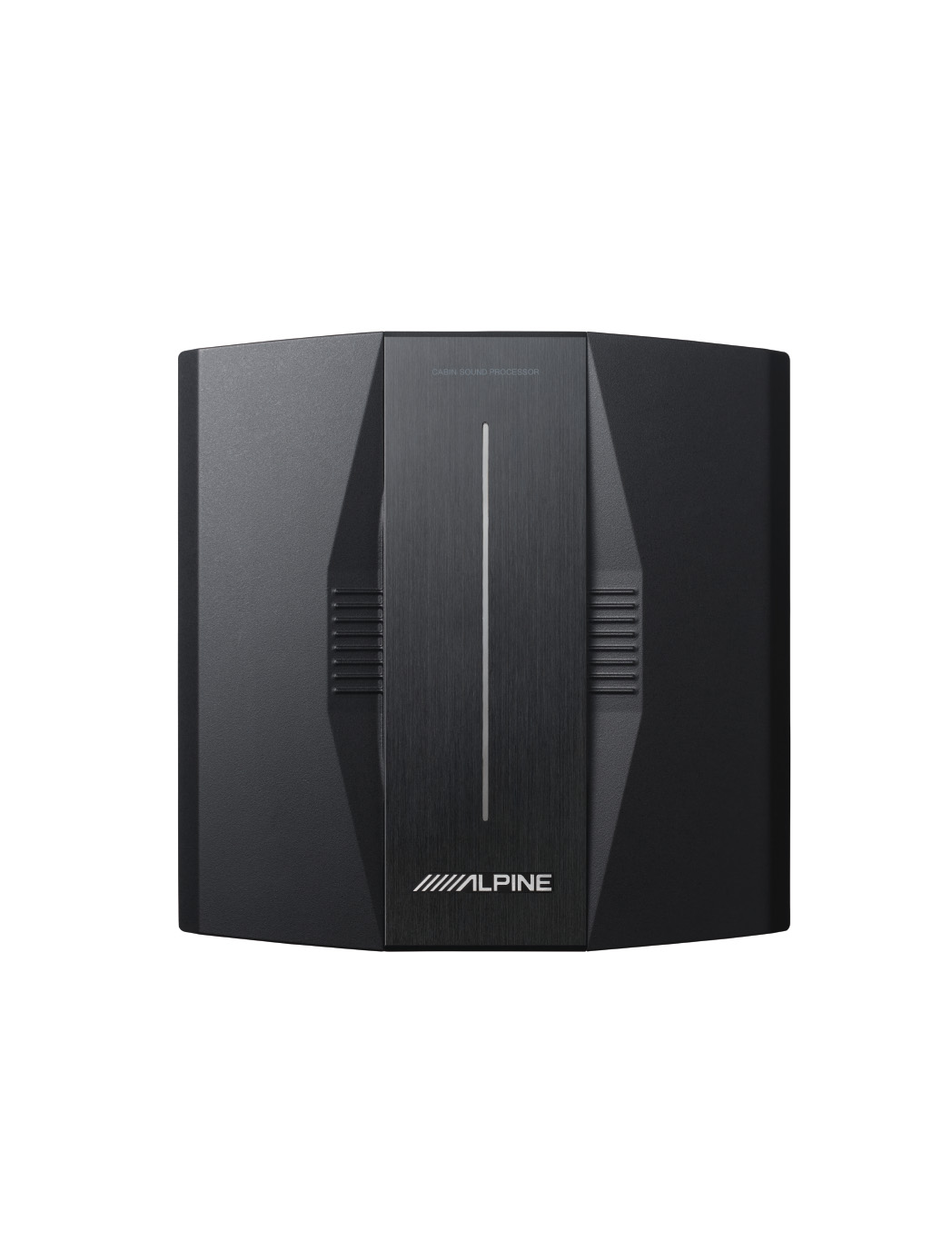

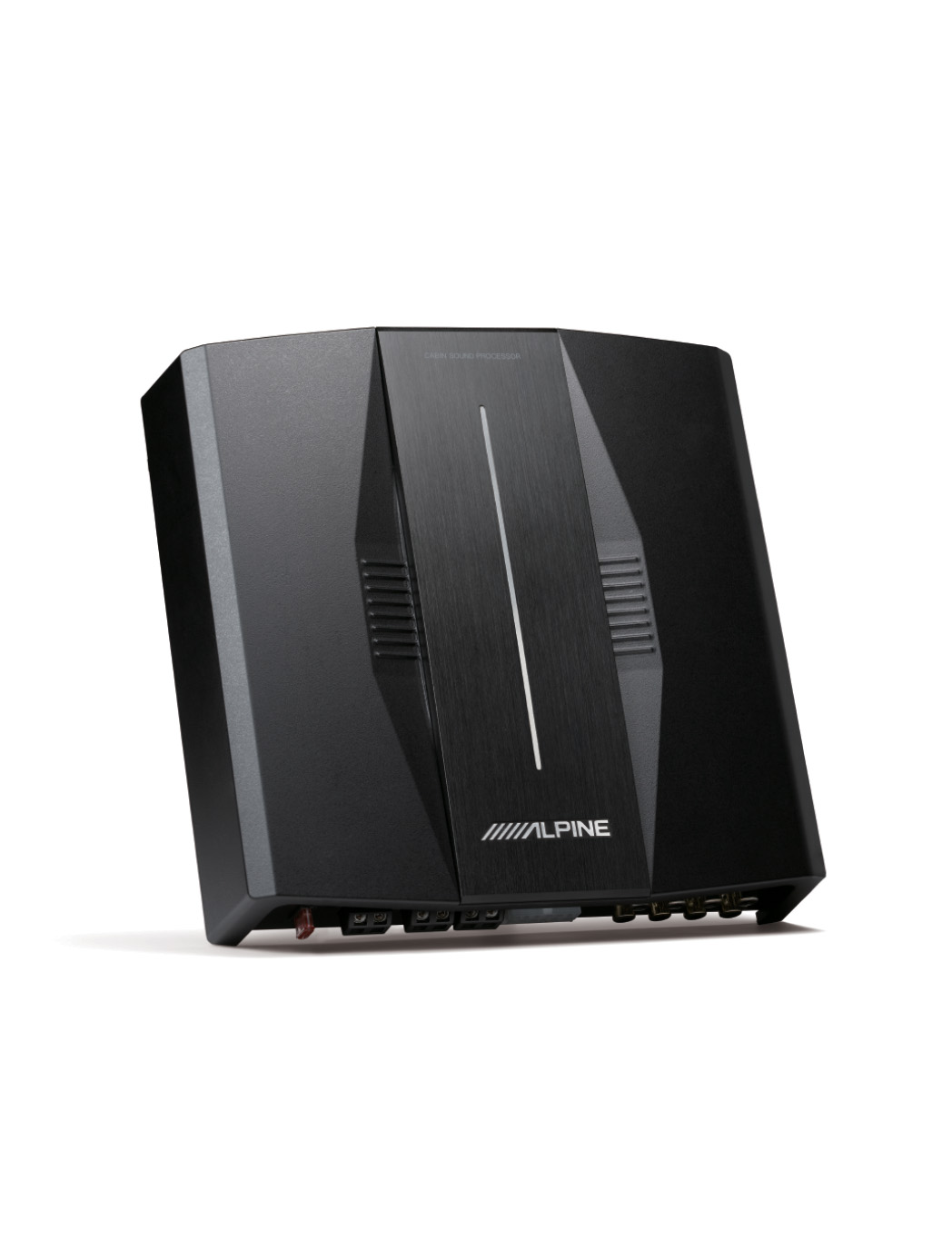

Alpine PXE-C80-88 8 CHANNEL AUTO TUNING DSP AMPLIFIER
Product highlights:
•t8-channel car amplifier with digital signal processing
ot50 watts RMS x 6 + 150 watts RMS x 2 at 4 ohms
ot50 watts RMS x 6 + 300 watts RMS x 2 at 2 ohms
•tHigh-Resolution Class D amp technology
otfrequency response: 10-48,000 Hz
•tsettings and adjustments made via Alpine's DSP control app automatically on your iPhone and automatically or manually on your PC device
otdigital signal processing: 96 kHz, 24-bit
otautomatic tuning via iPhone uses built-in mic and Bluetooth® connection to amp (dongle included)
otautomatic tuning via PC uses an external measurement microphone like Alpine's KTX-CSP1 and USB connection to amp (cable included)
otsignal processing includes input/output routing, 31-band EQs, and multi-channel time alignment
otAnti-EQ eliminates factory EQ curves
More info:
•tinputs: coax and USB digital (up to 96 kHz, 32-bit); 8-channel high-level speaker (up to 30V); 6-channel RCA
•tpreamp outputs: 8-channel processed (4V)
•twiring and hardware not included with amplifier
ot8-gauge power and ground wires recommended
•tfuse rating: 40A
•tdimensions: 8.82"W x 2.14"H x 10.43"D
•twarranty: 1 year
•tMFR # PXE-C80-88
What's in the box:
Alpine PXE-C80-88 owner's manual
•t8-Channel processor/amplifier (installed 40A mini-ATO fuse)
•tCSP Controller (attached 16" cable with 4-pin connector)
•t16.25' Controller cable (4-pin connector on one end / RJ-12 connector on other end)
•tKCE-800BT Bluetooth module (attached 6" cable terminated in an RJ-45 connector)
•t5' USB-A cable (2.0)
•t6" 20-Pin input harness
•t6" 12-Pin output harness
•t2 Mounting plates
•tFour 3/4" pan-head screws
•tTen 6mm counter-sunk machine screws
•tQuickstart guide (En/ Sp/ Fr/ Others)
•tWarranty information
•tProduct registration information
•tQuickstart addendum
