Product Description
The realistic sound you want
Alpine Authorized Online Dealer

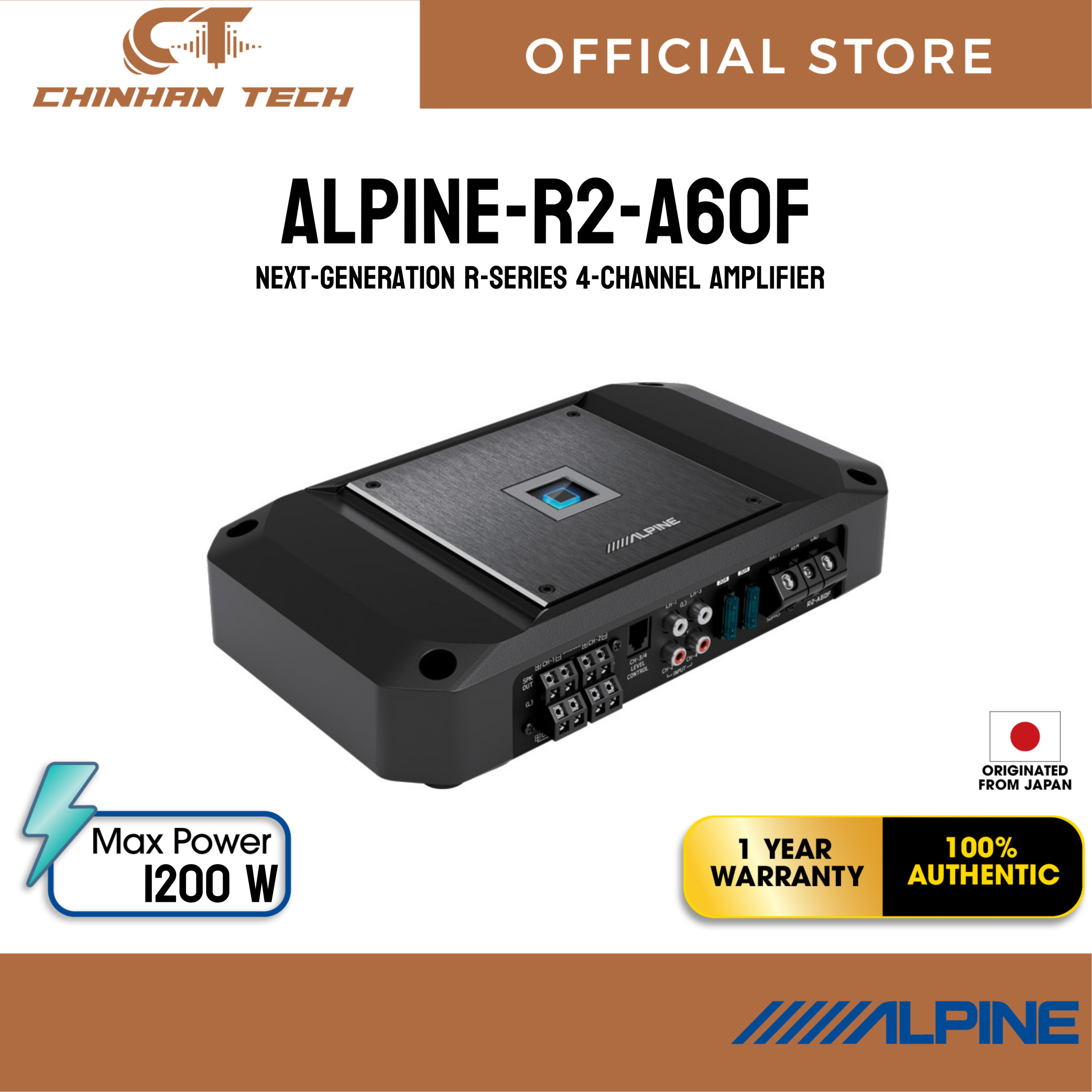

Into Hi-Res music? Alpine's R2-Series R2-A60F amplifier reproduces high-frequency sounds up to 45,000 Hz, so you can enjoy the crystal-clear sound and enhanced realism you want in your music. Alpine has built some of its top-of-the-line amplifier technology into this R2-Series amp, including high-efficiency transformers, premium low-noise custom capacitors, and low-distortion dual "Sierra" feedback/correction circuitry. Whether playing high- or standard-resolution music files, you can count on superior sound quality from this amp.
How much power?
The R2-A60F 4-channel amp produces 100 watts RMS per channel, perfectly matching the power ratings of Alpine's R-Series speakers. You can also use this versatile amp in 3-channel mode, driving a pair of speakers with the front channels, and bridging the rear channels to send up to 300 watts RMS to a subwoofer. Advanced Class D amp technology allows this powerful amp to be built small enough to fit in almost any location.
Tone control for all configurations
The high-pass filters remove extreme low bass from your full-range speakers, so they'll play more efficiently. If you plan to use your R2-A60F to run subwoofers, you can adjust the low-pass filters to get just the right bass tone. Best of all, you can set up the filters for bandpass operation, so you can use this amp to power tweeters and midrange drivers, and use a separate amp like a matching Alpine R2-A75M 750-watt or an R2-A150M 1500-watt amp to power your sub.
Description:
●4-channel car amplifier
●100 watts RMS x 4 at 4 ohms
●150 watts RMS x 4 at 2 ohms
●300 watts RMS x 2 bridged at 4 ohms
●CTA-2006 compliant
●Class-D amplifier design
●frequency response: (+0/-3 dB) 15 to 45,000 Hz (Hi-Res capable)
●variable high-pass, low-pass, and bandpass filters on front and rear channels
●optional RUX-KNOB.2 wired remote available for rear channels
More Features:
●preamp and speaker-level inputs
●speaker-level inputs require RCA adapter cables
●speaker-level inputs handle up to 10V
●wiring and hardware not included with amplifier
●4-gauge power and ground leads recommended
●fuse rating: 30A x 2
dimensions: 11.12"W x 2.14"H x 6.92"D
warranty: 1 year
What's in the box:
Alpine R2-A60F owner's manual
●4-Channel amplifier (2 installed 30A ATO fuses)
●Four 1" pan-head screws
●3mm Allen key
●2.5mm Allen key
●2mm Allen key
●Owner's manual (En/ Sp/ Fr/Others)
●Alpine Verification Certificate
●Power supply note
