Product Description
Product highlights:
5-channel car amplifier
40 watts RMS x 4 + 200 watts RMS x 1 at 4 ohms
60 watts RMS x 4 + 300 watts RMS x 1 at 2 ohms
120 watts RMS x 2 bridged at 4 ohms + 300 watts RMS x 1 at 2 ohms
channels 1-4:
Hi-Res Audio Certified (frequency response: 10-40k Hz)
variable high-pass filters (50-400 Hz, 12 dB/octave)
sub channel:
variable low-pass filter (50-400 Hz, 24 dB/octave)
variable bass boost (0-12 dB at 50 Hz)
optional wired remote available
More Info:
preamp and speaker-level inputs
speaker-level inputs handle up to 10V
RCA adapters required for speaker-level input
signal-sensing turn-on with speaker-level inputs
wiring and hardware not included with amplifier
4-gauge power and ground leads recommended
fuse rating: 30A x 2
dimensions: 11.88"W x 2.23"H x 8.28"D
warranty: 1 year
Our 60-day money-back guarantee

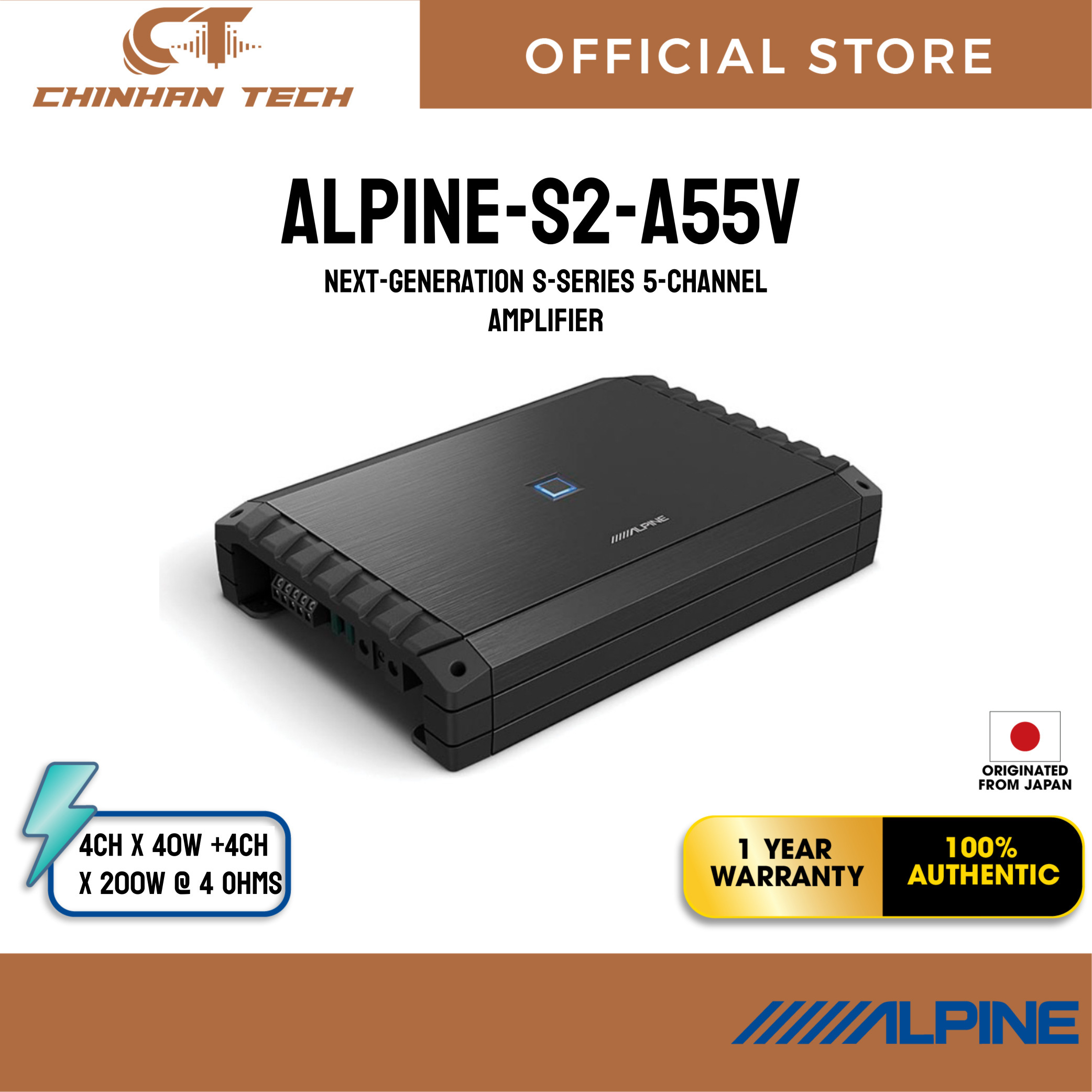

MFR # S2-A55V
What's in the box:
Alpine S2-A55V owner's manual
5-Channel amplifier
Two 30-amp ATO fuses (installed)
2 End caps
Four 3/4" Screws
Four 1/4" screws
2mm Allen key
Owner's manual (En/ Sp/ Fr/ Others)
Alpine Verification Certificate
Warranty information
Power supply note
On-line product registration information
