Product Description
Product details of DLS RZ6.2Q 6.5' 2 WAY COMPONENT SPEAKER 300W MAX POWER#PERODUA#TOYOTA#PROTON#HONDA#NISSAN

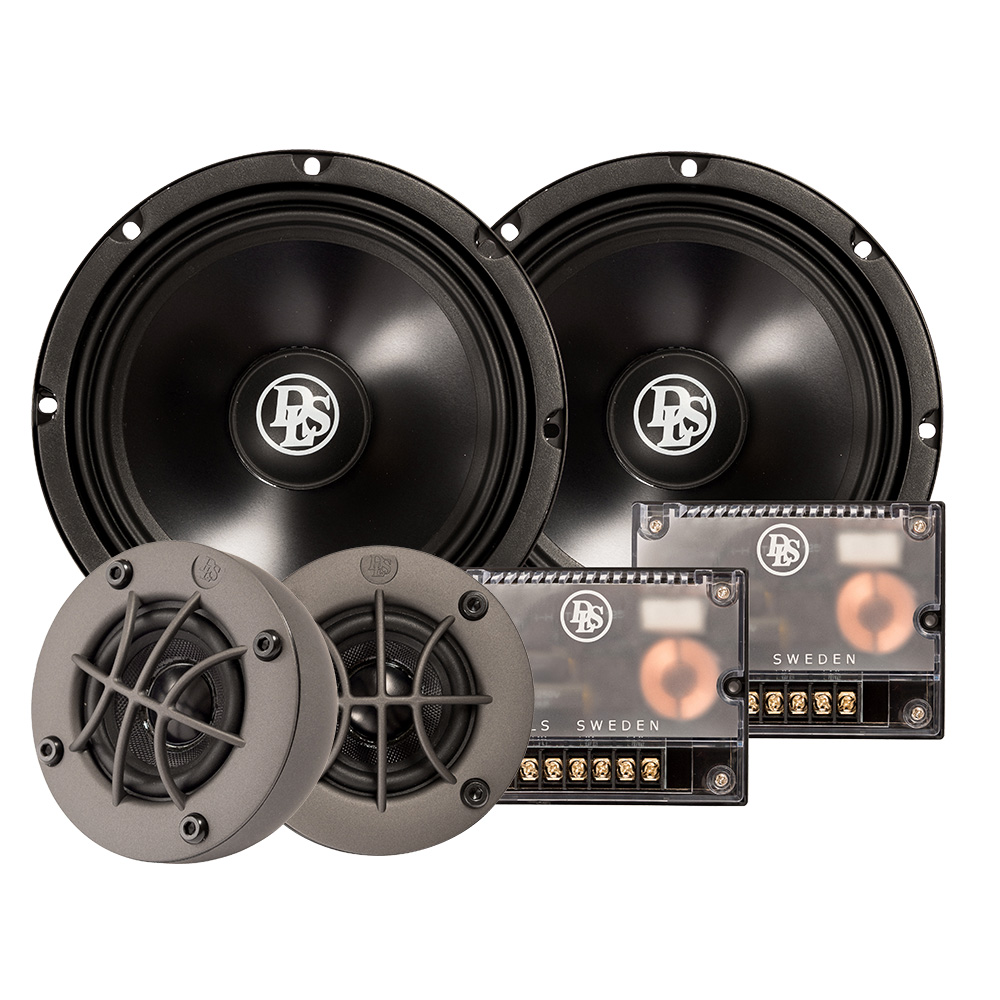

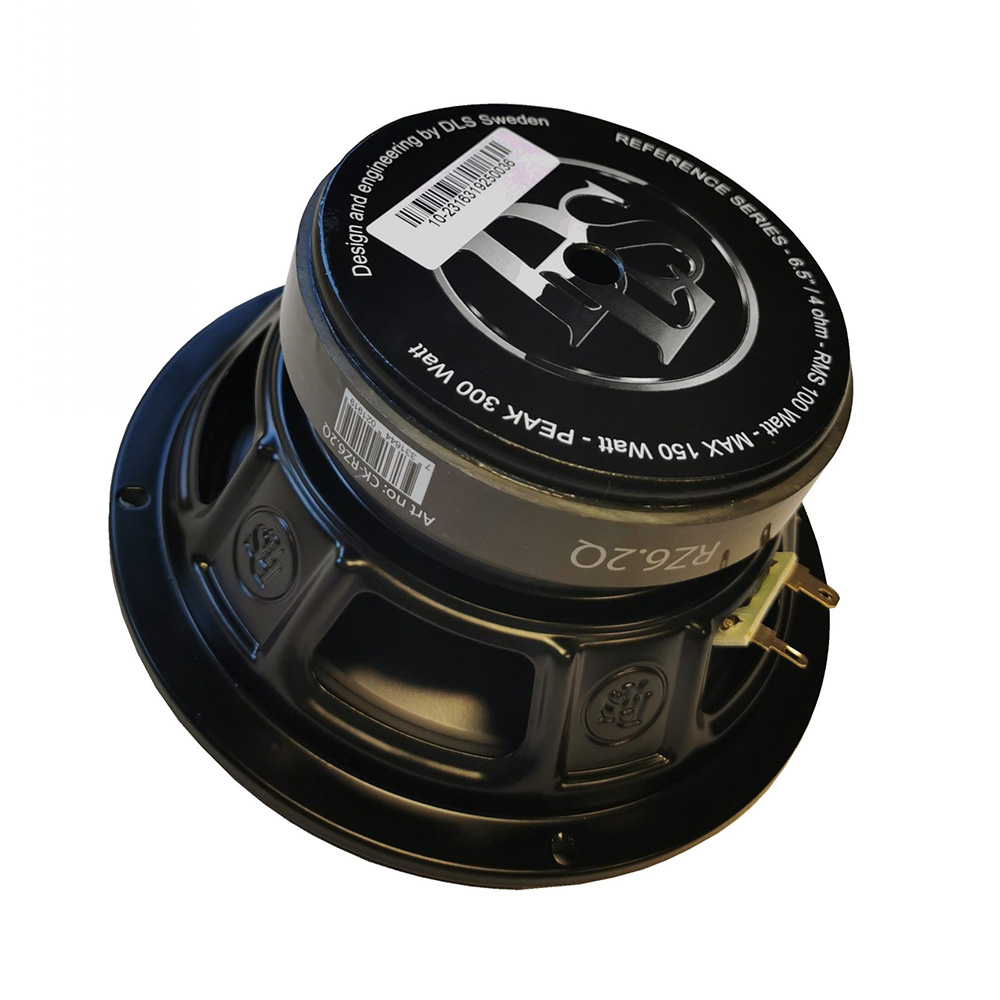

- DLS RZ6.2Q 6.5' 2 WAY COMPONENT SPEAKER 300W MAX POWER
- 1YEAR WARRANTY
- SPEC
- -Woofer size 16,5 cm (6,5″) Cone material Black anodized aluminium cone
- -Tweeter RC50 – 50 mm wide band tweeter
- -Power handling capacity 100 W RMS / 150 W max / 300 W peak power
- -Impedance 4 ohm
- -Frequency range 50 – 22 000 Hz
- -Sensitivity 85 dB (1W/1m)
- -Crossover Filter box with 6/12 dB slope (LP/HP)
- -Crossover point (Hz) 1500 Hz
- -Size of filter box 145 x 85 x 45 mm ( 5,71 x 3,35 x 1,77″)
- -Outer diameter of woofer 165 mm (6,5″)
- -Cone material Black anodized aluminium cone
- -Magnet size 110 mm (4,33″)
- -Mounting depth 75 mm ( 3″)
- -Mounting hole 145 mm (5,7″)
- T/S parameters
- -single V/C
- -Fs 64,2 Hz Re 3,4 Ohm Qms 7,29
- -Vas 6,27 liter Vas 0,22 Cuft Qes 0,88
- -Qts 0,79 Sd 143 cm² BL 6,59
- Reference series RZ6.2Q implement DLS original design, anti-vibration PENTA basket with five reinforced pillars and DLS imprinted logos.
- The large magnet, aluminum cone, woofer nicely blends with a 50mm wide band tweeter through a specially tuned high-grade crossover. It enables special installations with an improved soundstage combined with bass power, clarity and warmth.
- #PERODUA#TOYOTA#PROTON#HONDA#NISSAN
