Product Description

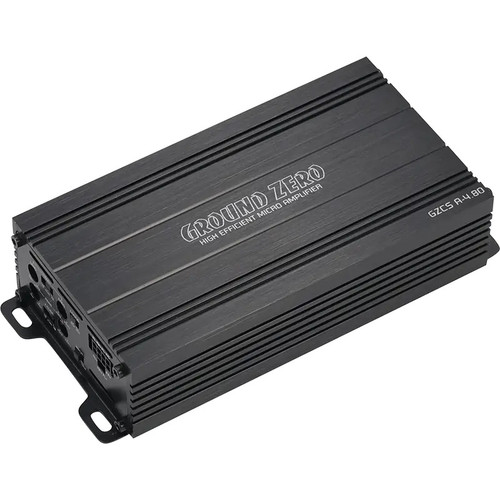

Class D micro amplifer
4-channel amplifier with small dimensions, integrated active crossover and auto-on function
- Micro 4-channel amplifier
- SMD components
- Class D technology
- Active crossover
- 2 ohms stable in stereo mode
- Bridgeable for subwoofer use
- ISO harness available separately
| Model | Compact class D amplifier |
|---|---|
| Channels | 4 |
| Output Power (@ 4Ω) | 4x 60 Watts RMS |
| Output Power (@ 2Ω) | 4x 80 Watts RMS |
| max. Power (bridged) (@ 4Ω) | 2x 160 Watts RMS |
| max. Output Power (CEA-2006A / 10%THD+N) | 2x 200 Watts |
| Frequency Response | 10 Hz – 35 kHz |
| HPF / LPF / BPF | ● / ● / ○ |
| Bass Boost / Phase switch | ○ / ○ |
| High level input / Auto-on | ● / ● |
| Remote | ○ |
| BIAS Setting | ○ |
| Linkmode | ○ |
| Dimensions (W x L x H) | 82 x 151 x 40 mm / 3.23″ x 5.94″ x 1.57″ |
