Product Description

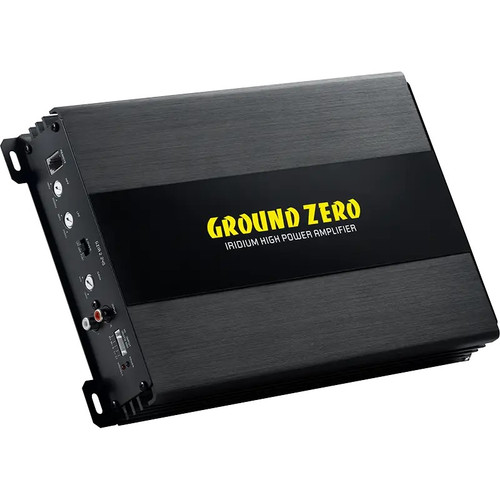

High-Quality amplifier
2-channel amplifier with class A/B circuit, integrated active crossover and black anodized heatsink
- 2-channel amplifier
- Class AB technology
- Variable active crossover and bass boost
- Stable power supply
- Large terminals
- Black anodized heatsink with Ground Zero lettering
- High-level input with auto-on function
| Model | High-Quality Class A/B amplifier |
|---|---|
| Channels | 2 |
| Output Power (@ 4Ω) | 2x 150 Watts RMS |
| Output Power (@ 2Ω) | 2x 240 Watts RMS |
| max. Output Power (CEA-2006A / 10%THD+N) | 550 Watts |
| Output Power (@ 4Ω) bridged | 480 Watts RMS |
| Frequency Response | 10 Hz – 30 kHz |
| HPF / LPF / BPF | ● / ● / ○ |
| Bass Boost / Phase switch | ○ / ○ |
| High level input / Auto-on | ● / ● |
| Remote | optional |
| BIAS Setting | ○ |
| Linkmode | ○ |
| Dimensions (W x L x H) | 192 x 284 x 49 mm / 7.56 x 11.18 x 1.93″ |
