Product Description
1000 Watts SPL

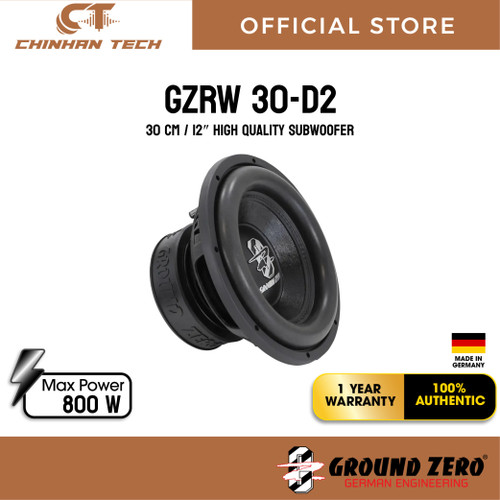

12″ high quality SPL subwoofer with reinforced paper cone
- 12″ SPL subwoofer
- Klippel® optimized
- Reinforced paper cone with 3D honeycomb structure
- Long stroke compound surround
- Resonance free GZ steel basket
- 63 mm / 2.5″ copper voice coil
- 2-layer Polycot-Conex spider
- IMPP dust cap with 3D structure logo
| Model | High-Quality SPL subwoofer |
|---|---|
| Diameter | 30 cm / 12″ |
| Power handling (RMS/SPL) | 600 / 1000 Watts |
| Impedance | 2x 2 Ohms |
| Efficiency | 86 dB |
| Power recommendation | 500 – 1000 Watts |
| Voice coil | 63 mm / 2.5″ Copper |
| Cone | Reinforced paper with honeycomb structure |
| Max. Excursion (Xmax) | 34 mm / 1.34″ |
| Mounting Ø | 285 mm / 11.22″ |
| Mounting depth | 162 mm / 6.38″ |
| Resonance frequency (Fs) | 32.5 Hz |
| Overall quality (Qts) | 0.73 |
| Equiv. air volume (Vas) | 40.4 L / 1.43 cu.ft. |
