Product Description

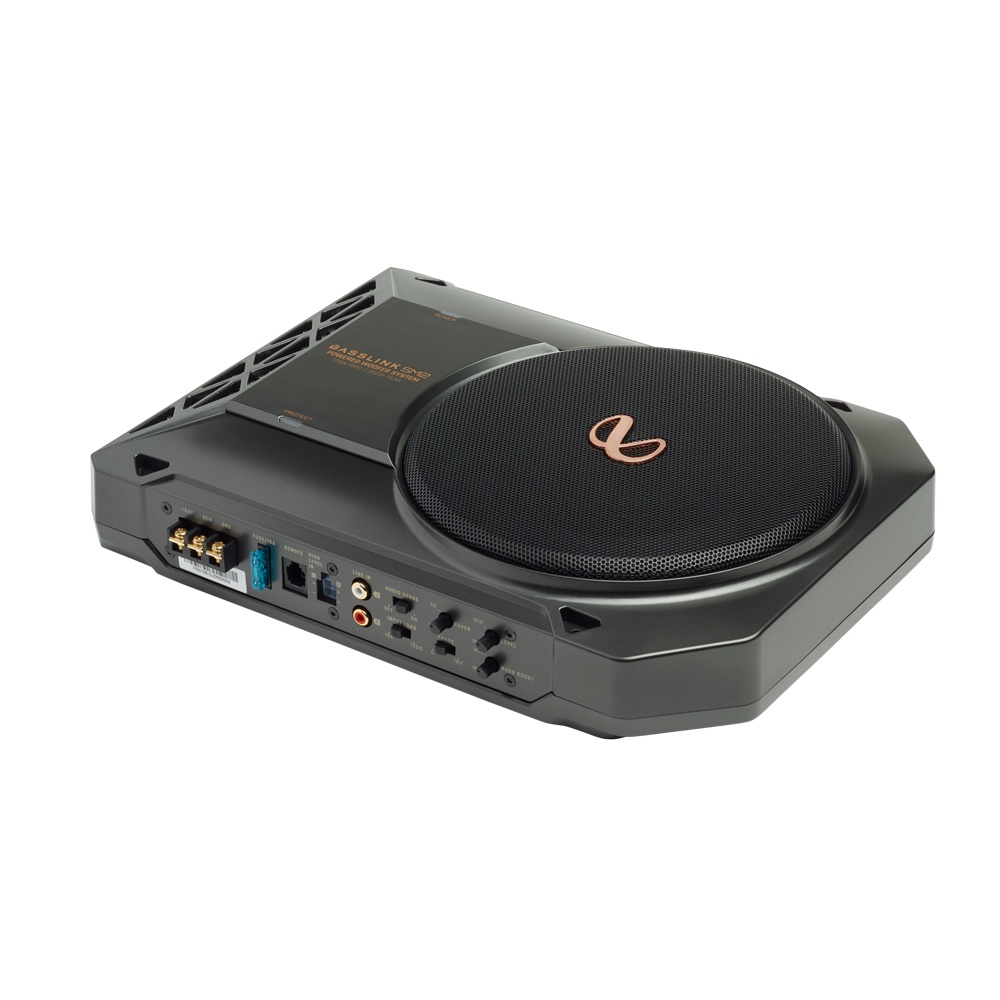

The BassLink SM2 self-powered subwoofer fits under the front seat of many vehicles, and adds great bass to any vehicle audio system. Its shallow-profile, 8" woofer and custom tuned low profile enclosure makes it possible to add bass in vehicles where space is limited. Its fully adjustable crossover and bass EQ, gives you the tools needed to tune the BassLink SM2 to your system and vehicle. To drive the proprietary 8" woofer an energy efficient Class D digital amplifier delivers great power while keeping cool and drawing minimal current from yor vehicles charing system.
General Specifications
Woofer : 8" (200mm)
Amplifier Power : 125W RMS
Frequency Response : 35Hz – 120Hz
Fuse : 15A
Maximum Current Draw : 12A
Quiescent Current Draw : <800mA
Input Sensitivity : 0.05V – 2V Line-Level Input; 0.5V – 20V High-Level Input
Crossover Frequency : 50Hz – 120Hz
Crossover Slope : 12dB/octave
Bass Boost : 0dB to +9dB @ 70Hz
Dimensions : (L x W x H)13-9/16" x 9-7/8" x 2-13/16" (344mm x 250mm x 71mm)
