Product Description

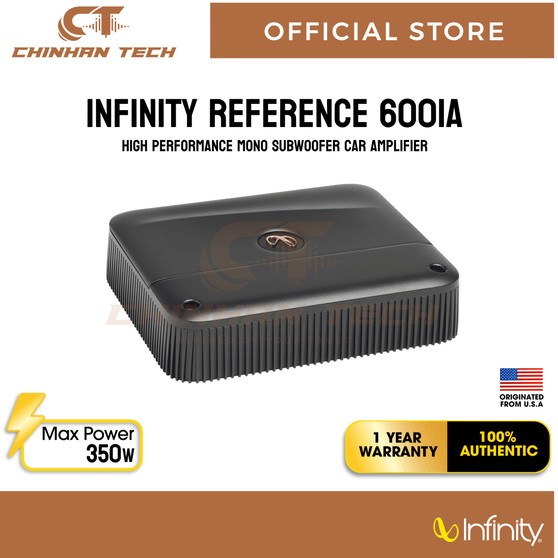

About the Infinity Reference 6001A
Streamlined for power
Infinity's sleek Reference 6001A mono subwoofer amplifier will add bass firepower and excitement to your music without losing its cool. This power plant can pump out up to 600 watts RMS to your sub, while its Class D design ensures the amp's high output will put minimal strain your vehicle's electrical system. A wired remote lets you control the bass from your front seat.
Works in almost any vehicle
Speaker-level inputs and signal-sensing turn-on allow this amplifier to work in almost any system, even if you're keeping your car's factory radio. Wiring adapters are included with the amp for just that application. You can use the low-pass filter and variable bass boost to maximize the performance of your subwoofer and enclosure, while a phase switch ensures that the bass will blend well with your full-range speakers.
Infinity Reference 6001A connection panel
Product highlights:
- mono subwoofer amplifier
- 350 watts RMS x 1 at 4 ohms
- 600 watts RMS x 1 at 2 ohms
- Class D amp technology
- variable low-pass filter (32-320 Hz, 12 dB/octave)
- variable bass boost (0-12 dB at 45 Hz)
- phase switch (0, 180 degrees)
- wired remote bass control module included
More Info:
- preamp and speaker-level inputs
- bare wire to RCA adapters included for high-level input
- wiring and hardware not included with amplifier
- 8-gauge power and ground leads recommended
- fuse rating: 30A x 2
- dimensions: 8-5/8"W x 2-1/4"H x 7"D
What's in the box:
- Mono amplifier
- Four 30A fuses (2 installed/2 spares)
- 2 Speaker wire to RCA adapters
- RBC Remote level control w/ attached 16.5' cable (RJ-25 terminated)
- Four 2-1/8" screws
- Two 3/8" screws
- Logo badge w/ adhesive backing
- Owner's manual (Eng/Span/Fren/Others)
