Product Description
Digital Media Receiver featuring 6.8" Capacitive Touch Monitor / Apple CarPlay (Wireless, Wired) / Android Auto™ (Wireless, Wired) / Wireless Mirroring / Bluetooth® / 13-Band EQ / Short Chassis
Android Auto™ – Connect Wirelessly or via USB
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.
Wireless Mirroring
By installing the “MirrorApp+” app, your mobile phone is seamlessly displayed on the receiver's screen without cable. You can enjoy a variety of apps such as Waze, YouTube™, and Instagram. Touch control is possible from both screen and mobile phone.
SOUND OPTIMIZATION

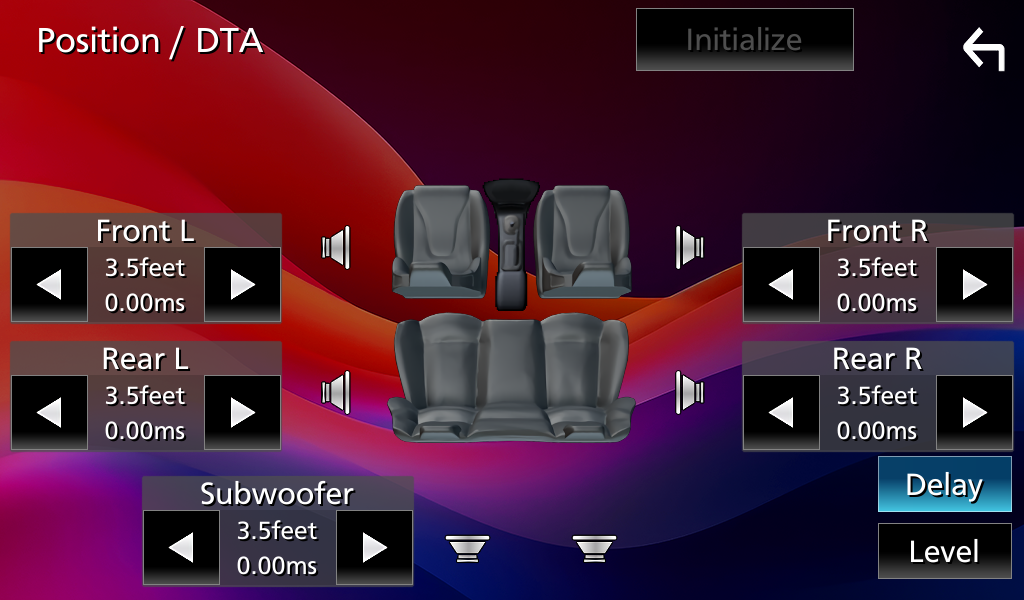

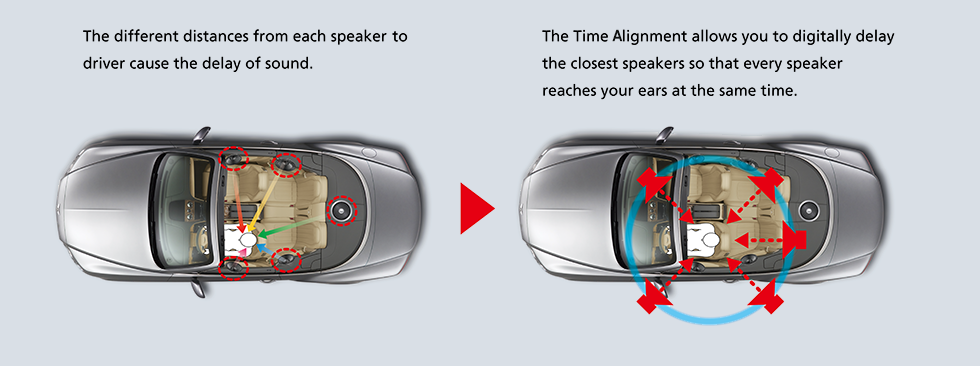

Time Alignment
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
13-Band Equalizer
Use the 13-Band Equalizer to manually adjust the sound to your taste.
Media Playback:
MP3 Compatible with Tag: USB
WMA Compatible with Tag: USB
WAV Compatible with Tag: USB
AAC Compatible with Tag: USB
FLAC Compatible with Tag: USB
H.264 Compatible: USB
WMV Compatible: USB
MPEG 1/2 Compatible: USB
MPEG 4 Compatible: USB
MKV Compatible: USB
Bluetooth Control:
Built-in Bluetooth[1]: Yes (Hands-Free MIC Built-in)
Hands Free Call: Yes (HFP1.7)
Audio Streaming & Control (A2DP, AVRCP): Yes
Supported Audio Formats: AAC / SBC
Voice Dialing (voice recognition compatible mobile phone required): Yes
Phone Book Access Profile (PBAP): Yes
Wi-Fi Control:
Built-in Wi-Fi: Yes
Android Control:
Android Auto[2]: Yes (via Wi-Fi or USB)
Mirroring for Android: Yes (via Wi-Fi) *Need mirroring App
iPod/iPhone Control
CarPlay[3]: Yes (via Wi-Fi or USB
Mirroring for iPhone: Yes (via Wi-Fi) *Need mirroring App
USB:
USB Port: x 1 (High Speed)
Position: Rear
USB Power Supply: Yes (2.1A High Current Charging)
Radio Tuner:
Radio Data System: Yes
Preset Stations: 36 (FM: 24ch, AM: 12ch)
Auto Memory Entry: Yes
FM Frequency Range: 87.5-108.0MHz
AM Frequency Response: 531-1,611kHz
Audio:
Maximum Power Output (Front & Rear): 50Wx4
Full Bandwidth Power (Front & Rear): 22W x 4
EQ: Yes (13-Band Graphic EQ)
Preset EQ: Yes (7 Preset + 3 user)
Bass Boost: Yes
High-Pass Filter/Low-Pass Filter: Yes/Yes
Speaker Size Control: Yes
Inputs and Outputs:
Video Out: x 1 (V:RCA)
Rear View Camera Input: Yes
Line Output Terminals: 2 Preouts + Sub WF (Mono)
Pre-output Level/Impedance: 2.5V / 10k ohms
Subwoofer Output with Level/Frequency Control: Yes (Normal / Reverse)
General:
iDatalink Maestro Ready: Yes
Short Chassis: Yes
Wireless Remote Control Type: Optional (RM-RK259 required)
Steering Remote Control Ready: Yes
Learning Direct OEM Remote: Yes
Dimensions (W x H x D):
Installation Size: 178 x 100 x 85.7 (mm)
Weight: 1.03kg (Including Trim Plate)
