Product Description
Toroidal Transformer
Large-size toroidal transformer ensures stable power supply.
High winding density and low magnetic leakage improve power conversion efficiency and make the sound more natural and powerful.
Output Coil with Magnetic Shield
Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.

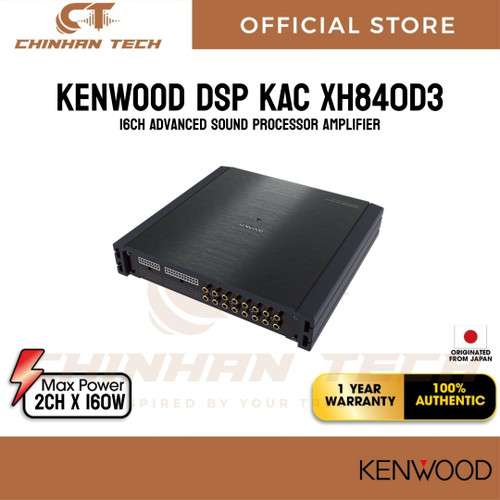

| Technical Specifications | KAC-XH840D3 |
|---|---|
| Amplifier Inputs | 16ch |
| Analog Inputs | 2ch (RCA) |
| Optical Input | 1ch |
| Coaxial Input | 1ch |
| Analog Outputs | 16ch (RCA) |
| Speaker Outputs | 16ch (8x 25W + 8x 80W) (@4Ω Bridge 2 x 160W 1% THD) |
| Frequency Response | 20Hz～20kHz |
| EQ | 31-Band |
| Signal-to-noise ratio S/N-(Amplifier) |
≥92dB |
| Signal-to-noise ratio S/N-(RCA) |
≥98dB |
| Operating Voltage | DC 9V～16V |
| Additional Features | HOST/ACC Startup selection, Overheat and overcurrent protection, USB connection, Work indicator External Controller, External Bluetooth interface, Custom interface (PC software, APP) |
| Dimmensions(W x D x H) | 290mm x 275mm x55 mm |
| Weight | 6.2kg |
