Product Description

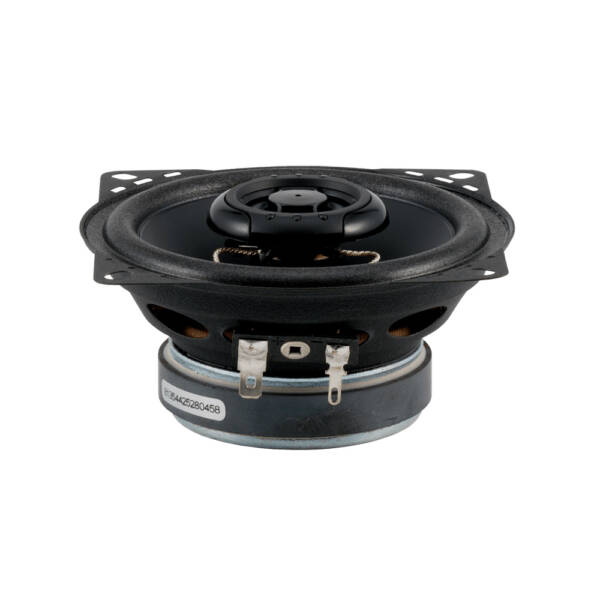

Experience superior sound quality with the Phoenix Gold ZX4CXS, a high-performance 4” 2-way coaxial speaker designed for clarity and efficiency. This compact yet powerful speaker system delivers crisp highs, rich midrange, and a balanced sound profile, making it a perfect upgrade for any car audio setup.
With 50W RMS power handling and a peak power of 150W, the ZX4CXS provides impressive audio performance in a small form factor. The 85dB sensitivity ensures efficient sound output, while the 125Hz – 20kHz frequency response captures a full range of sound.
Built for durability and precision, the ZX4CXS features a laminated-treated paper cone for natural sound reproduction, a 19mm balanced driver Mylar tweeter for crisp highs, and a polyimide voice coil for enhanced performance. The triple-layer UV-treated foam surround enhances longevity, and the rigid powder-coated steel frame ensures stability.
The ZX4CXS is designed for easy installation and includes speaker grills for protection and style.
ZX4CXS Specifications:
Speaker Type: 2-Way Coaxial Speaker
Speaker Size: 4” (102mm)
Frequency Response: 125Hz – 20kHz
Power Handling (RMS): 50W
Power Handling (MAX): 150W
Impedance: 4Ω
Sensitivity: 85dB (1W/1m)
Voice Coil: 1” (25mm)
Mounting Depth: 43mm
Mounting Diameter: 93mm
Outer Diameter: 102mm (130mm including ears)
Speaker Grills: Included
Unit: Sold as pairs
Weight (Each Speaker): 0.4 kg
T/S PARAMETERS
Re: 3.6 Ohm
Fs: 125 Hz
Qms: 6.178
Qes: 2.172
Qts: 1.607
Cms: 269 μM/N
Vas: 1.224 L
BL: 2.686 Tm
Sd: 56.75 cm²
Mms: 4.678 g
EBP: 57
