Product Description
Key Features:
-

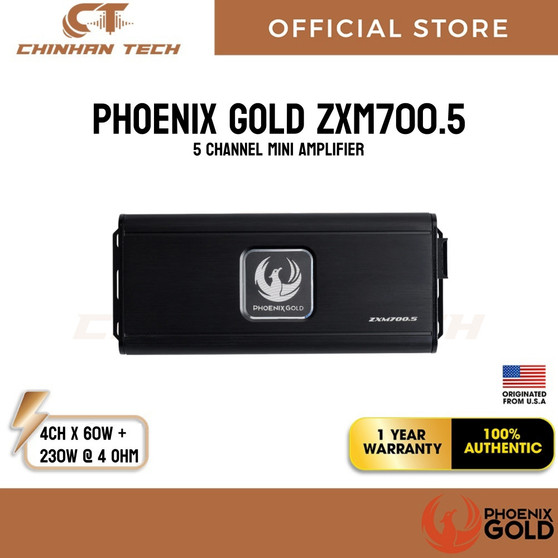

Unmatched Power in a Compact Design: The ZXM700.5 is designed to fit seamlessly into any setup, offering over 700W RMS while maintaining a remarkably small footprint. Ideal for those who demand high performance without compromising space.
-
Comprehensive Channel Configuration: The amplifier supports 4 or 5-channel inputs, allowing for flexible integration into any audio system. Whether you’re driving a full speaker system or adding a subwoofer, the ZXM700.5 has you covered.
-
Advanced Audio Control: Equipped with high-pass (HP) and low-pass (LP) filters for all channels, ensuring precise tuning and exceptional sound quality. Tailor your audio experience with ease and precision.
-
Versatile Input Options: The ZXM700.5 handles both high-level and low-level inputs, making it compatible with a wide range of audio sources and installation configurations.
-
Remote Gain Control for Sub Channel: Adjust your bass levels on the fly with the included remote gain controller, providing instant access to deep, rich bass.
-
Superior Sound Quality: Enjoy crystal-clear audio with a signal-to-noise ratio exceeding 90dB and minimal total harmonic distortion. The ZXM700.5 ensures every note is reproduced with stunning clarity and accuracy.
-
Quick and Easy Installation: Featuring a specially designed quick connector for the power, ground and remote, the ZXM700.5 makes installation fast and hassle-free, saving you time and effort.
Specifications:
-
Rated @ 14.4V < 1% T.H.D:
-
4x60W + 230W @ 4-Ohm
-
4x100W + 350W @ 2-Ohm
-
2x200W bridged @ 4-Ohm
-
-
Filters:
-
High-Pass (HP) & Low-Pass (LP) filters for 4 channels: 40 – 420Hz, 12dB
-
Low-Pass (LP) filters for SUB channel: 24dB
-
-
Bass Boost: 0-18dB
-
Input Sensitivity: 0.2V-10.0V
-
Signal/Noise Ratio: >90dB
-
Total Harmonic Distortion: <1.0%
-
Remote Bass Knob: Included
-
Dimensions: 202×83.1×34.8mm
