Product Description

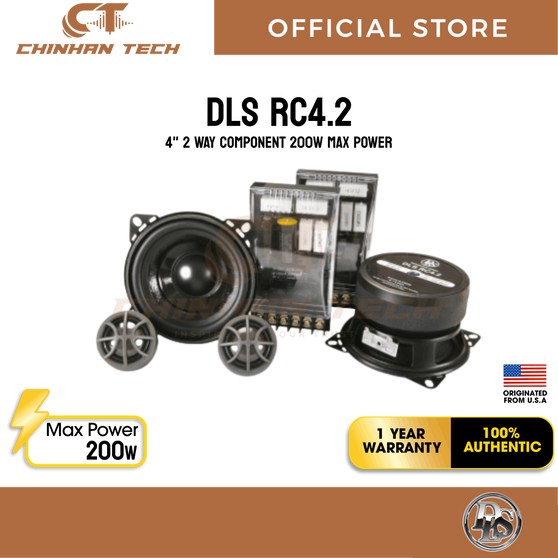

DLS Reference RC4.2 - 2-way component 4 inches
Reference series RC4.2 is a 10 cm (4”) 2-way component kit with a separate 25 mm tweeter with copper rings for improved treble sound.
Install the tweeter on the dashboard or recessed in the door, all mounting parts are included.
The bass driver has a coated paper cone with rubber edge and a 80 mm powerful magnet that guarantees a good bass control and a fantastic sound. Grilles are included.
Woofer size : 10 cm (4")
Tweeter : RC25, 25 mm (1,25") silk dome tweeter with copper rings
Power handling capacity : 60 W RMS / 100 W max / 200 W peak power
Impedance : 4 ohm
Frequency range : 65 - 22 000 Hz
Sensitivity : 86 dB (1W/1m)
Crossover : Filter box with 12 dB slope (HP & LP)
Crossover point (Hz) : 4500 Hz
Size of filter box : 120 x 66 x 33 mm ( 4,72 x 2,6 x 1,3")
Outer diameter of woofer : 102 mm (4")
Cone material : Coated paper cone
Magnet size : 80 mm (3,15")
Mounting depth : 57 mm ( 2,25")
Mounting hole : 97 mm (3,82")
T/S parameters single V/C :
Fs 80Hz Re 3,3Ohm Qms 4,8
Vas 1,4 liter Vas 0,05 CuftQes 0,68
Qts 0,6 Sd cm² BL 5,4
