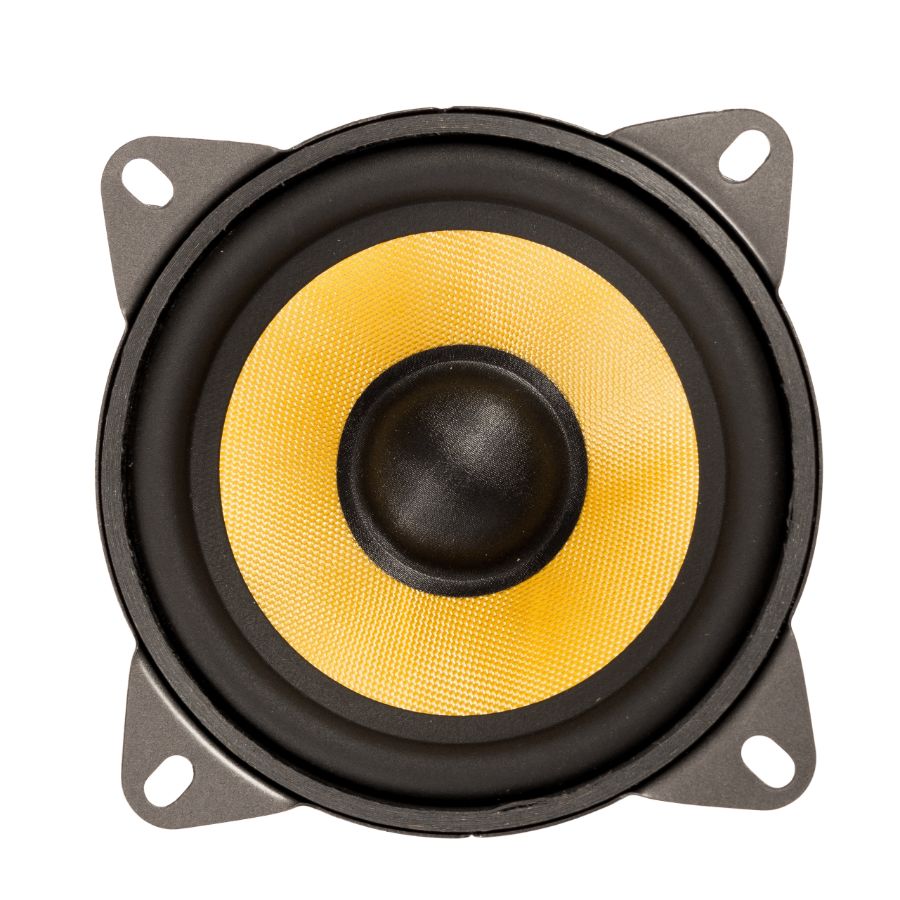

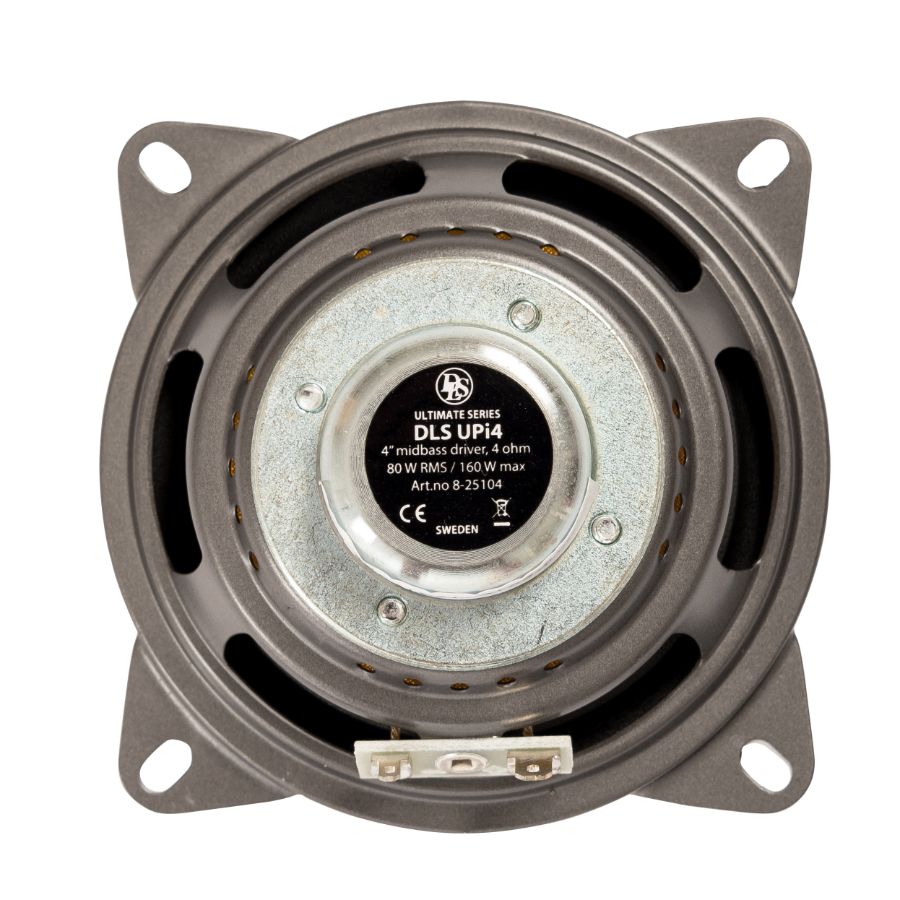

Ultimate series UPi4 is a 10 cm (4") 2-way component with Kevlar cone.
Fits most cars designed for 4" speakers.
- Can be installed in new BMW cars, adapter is included.
The tweeter fits directly in the A-pillar tweeter attachment for BMW.
- A separate 200 Hz High pass filter can be connected when used in BMW cars with subwoofer.
- Neodymium magnet system.
- Small installation depth
- Powerful neodymium magnet system.
- Filter boxes with selectable tweeter level in two steps.
- 25 mm silk dome tweeter RC25
- Grilles are included.
:::::Specifications:::::
Woofer size : 10 cm (4")
Tweeter : RC25 - 25 mm silk dome tweeter
Power handling capacity : 80 W RMS / 160 W max
Impedance : 4 ohm
Frequency range : 65 - 22 000 Hz
Sensitivity : 89 dB /(1W/1m)
Crossover : Box filter with separate HP-filter 200 Hz
Crossover point (Hz) : 5000 Hz
Size of filter box : 124 x 94 x 33 mm ( 5.71 x 3.34 x 1.77")
Outer diameter of woofer : 100 mm (4")
Magnet size : 35 x 15 mm (1.38 x 0.59") neodymium
Mounting depth : 45 mm (1.77"), tweeter 20 mm (0.78")
Mounting hole : 100 mm (4"), tweeter 46 mm (1.8")
